Tech Tues | Maverick X3 Dash Cluster Reflash

Reflash The X3

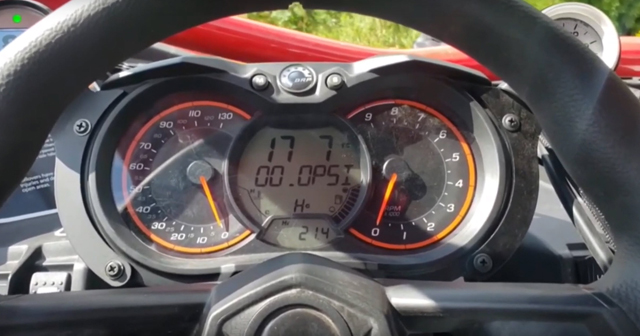

Evolution Powersports’ Dash Cluster Reflash (DCR) allows you to display boost, air fuel, and, soon, even belt temperature on the OEM cluster of 2017-19 Can-Am Maverick X3 models.

Here’s an video overview of Evolution Powersports’ DCR:

Video | Evolution Powersports’ Dash Cluster Reflash

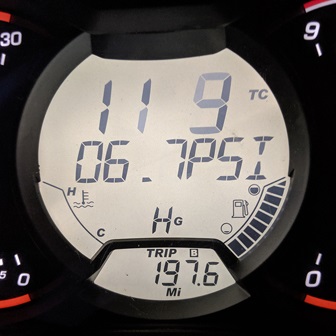

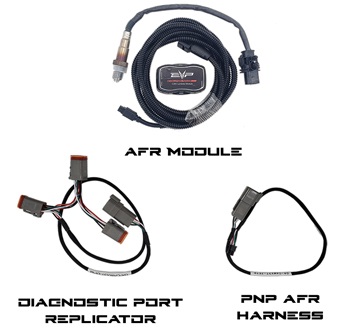

The DCR takes the boost-pressure reading directly from the ECU. Knowing boost pressure lets you verify if your vehicle is performing the way it should. In addition to boost pressure, EVP has a plug-and-play Air Fuel module that plugs into the diagnostic port: It requires an extra 02 bung (supplied) to be welded into the exhaust system.

There is no wiring other than plugging the module into the OEM diagnostic port and running the supplied 10’ cable to the included Bosch LSU 4.9 02 sensor. Along with Razorback Gauges, belt temperature can be displayed on the OEM cluster. The dash message that comes on when the key is in the “on” position can also be customized.

Purchasing this product requires you to ship your Dash Cluster to Evolution Powersports (see address in the Company Details at bottom of this page).

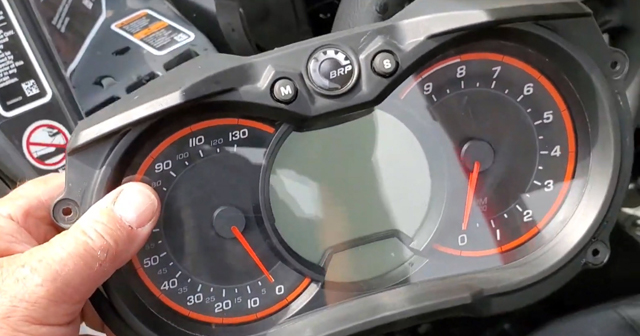

Here’s how to remove the dash cluster in a 2017-19 Maverick X3 in preparation for installing the EVP integrated Dash Cluster Reflash:

Video | Maverick X3 Dash Cluster Removal
